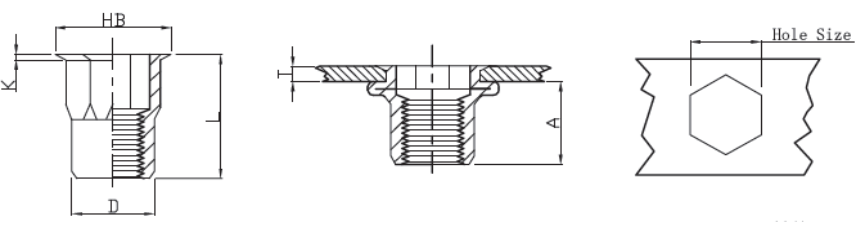

INSERTI SEMIESAGONALI TESTA RIDOTTA CORPO APERTO

THREAD CODICE ARTICOLO T
(grip range)
Min Max
A Ref Hole size
+0.10
D
+0.07
-0.1
HB
+/-0,3
K
+/-0,2
L
+/-0,3
M3 2M-KTRSEM3C1 0.5-1.5 6,6 5,0 5,0 6,0 0,6 8,5
M4 2M-KTRSEM4C1 0.5-2.0 8,3 6,0 5,9 7,0 0,5 12,0
M5 2M-KTRSEM5C1 0.5-2.5 8,7 7,0 6,9 8,0 0,5 13,0
M6 2M-KTRSEM6C1 1.0-3.5 10,5 9,0 8,9 10,0 0,6 16,0
M8 2M-KTRSEM8C1 1.0-3.5 11,3 11,0 10,9 12,0 0,65 17,5
M10 2M-KTRSEM10C1/13 1.0-4.0 12,8 13,0 12,9 14,5 0,75 21,0
M12 2M-KTRSEM12C1 1.0-4.0 14,8 16,0 15,9 17,5 1,0 24,0



MATERIALI: ACCIAIO ZINCATO / ACCIAIO INOX
